ASTM A36 Angle steel
Standard: ASTM A36.
Technology: Hot Rolled.
Type: Equal & Unequal.
Surface: black or galvanized.
Classification :
PRODUCT DETAILS
Product Description
Hot rolled ASTM A36 steel angle bar is the most widely used structural steel by the construction industry as its very economical cost. Structural mild A36 angles are manufactured by rolling pre-heated blooms into an angle shape. Commonly the angle beam shows 90 degree; other degrees will be available on your order. All our metal angles are produced under strict quality controls to make sure that their conformity to ASTM A36 specification.
ASTM A36 steel angle
A36 steel angle covers unequal and equal angle steel according to the depth of legs. Unequal angle steels or L-shaped steels as well as equal angle steels are necessary components for building communication tower, power tower, workshops, steel structure buildings and other engineering projects. Apart from industrial and engineering applications, angle iron could be found in our everyday life like industrial shelve, classical coffee table and so on.
Galvanized ASTM A36 steel angle
Hot-dip galvanized steel angle is ideal for outdoor applications or corrosive environments where black steel angles could be badly corroded in short time. The amount of galvanization is made according your requirements.
Product description:
- Item: A36 Angle Steel.
- Standard: ASTM A36.
- Technology: Hot Rolled.
- Type: Equal & Unequal.
- Surface: black or galvanized.
- Equal angle:
- Size: 20 × 20 mm to 200 × 200 mm.
- Thickness: 3 to 20 mm.
- Length: 6 m, 9 m, 12 m or per your request.
- Unequal angle:
- Size: 30 × 20 to 250 × 90.
- Thickness:3 to 10 mm.
- Length: 6 m, 9 m, 12 m or per your request.
A36 structural steel angle features & benefits:
- Low-cost material compared to HSLA steels.
- General for construction & industrial applications.
- Galvanized A36 steel angles increase resistance to corrosion.
- Weldable, formable and machinable.
| Product Name | Steel Angle、Angle Steel、iron Angle、Angle Bar，MS angle，Carbon Steel Angle |
| Material | Carbon Steel/Mild Steel/non-alloy and alloy steel |
| Grade | SS400 A36 ST37-2 ST52 S235JR S275JR S355JR Q235B Q345B |
| Size(Equal) | 20x20mm-250x250mm |
| Size(unequal) | 40*30mm-200*100mm |
| Length | 6000mm/9000mm/12000mm |
| Standard | GB, ASTM, JIS, DIN, BS, NF,etc. |
| Thickness tolerance | 5%-8% |
| Application | Mechanical&manufacturing,Steel structure,Shipbuilding,Bridging,Automobile classis,Construction,Decoration. |
Technical data
Size Chart of Angle Steel
| Size(mm) | Weight (kg/m) |
Size(mm) | Weight (kg/m) | Size(mm) | Weight (kg/m) | Size(mm) | Weight (kg/m) |
| 25*25*3 | 1.124 | 90*90*10 | 13.476 | 200*200*20 | 60.056 | 100*63*10 | 12.142 |
| 25*25*4 | 1.459 | 90*90*12 | 15.94 | 25*16*3 | 0.912 | 100*80*6 | 8.35 |
| 30*30*3 | 1.373 | 100*100*6 | 9.366 | 32*20*3 | 1.171 | 100*80*7 | 9.656 |
| 30*30*4 | 1.786 | 100*100*7 | 10.83 | 32*20*4 | 1.522 | 100*80*8 | 10.946 |
| 40*40*3 | 1.852 | 100*100*8 | 12.276 | 40*25*3 | 1.484 | 100*80*10 | 13.476 |
| 40*40*4 | 2.422 | 100*100*10 | 15.12 | 40*25*4 | 1.936 | 110*70*6 | 8.35 |
| 40*40*5 | 2.976 | 100*100*12 | 20.611 | 45*28*3 | 1.687 | 110*70*7 | 9.656 |
| 50*50*4 | 3.059 | 100*100*16 | 23.257 | 45*28*4 | 2.203 | 110*70*8 | 10.946 |
| 50*50*5 | 3.77 | 110*110*7 | 11.928 | 50*32*3 | 1.908 | 110*70*10 | 13.476 |
| 50*50*6 | 4.465 | 110*110*8 | 13.532 | 50*32*4 | 2.494 | 125*80*7 | 11.066 |
| 60*60*5 | 4.52 | 110*110*10 | 16.69 | 56*36*3 | 2.153 | 125*80*8 | 12.551 |
| 60*60*6 | 5.42 | 110*110*12 | 19.782 | 56*36*4 | 2.818 | 125*80*10 | 15.474 |
| 63*63*5 | 4.822 | 110*110*14 | 22.809 | 56*36*5 | 3.466 | 125*80*12 | 18.33 |
| 63*63*6 | 5.721 | 125*125*8 | 15.504 | 63*40*4 | 3.185 | 140*90*8 | 14.1 |
| 63*63*8 | 7.469 | 125*125*10 | 19.133 | 63*40*5 | 3.92 | 140*90*10 | 17.475 |
| 63*63*10 | 9.151 | 125*125*12 | 22.696 | 63*40*6 | 4.638 | 140*90*12 | 20.724 |
| 70*70*5 | 5.397 | 125*125*14 | 26.193 | 70*45*5 | 4.403 | 140*90*14 | 23.908 |
| 70*70*6 | 6.406 | 140*140*10 | 21.488 | 70*45*6 | 5.218 | 160*100*10 | 19.872 |
| 70*70*7 | 7.398 | 140*140*12 | 25.522 | 70*45*7 | 6.011 | 160*100*14 | 27.274 |
| 70*70*8 | 8.373 | 140*140*14 | 29.49 | 75*50*5 | 4.808 | 160*100*16 | 30.853 |
| 75*75*5 | 5.818 | 140*140*16 | 35.393 | 70*50*6 | 5.699 | 180*110*10 | 22.273 |
| 75*75*6 | 6.905 | 160*160*10 | 24.729 | 70*50*8 | 7.431 | 180*110*12 | 26.464 |
| 75*75*7 | 7.976 | 160*160*12 | 29.391 | 70*50*10 | 9.098 | 180*110*14 | 30.589 |
| 75*75*8 | 9.03 | 160*160*14 | 33.987 | 80*50*5 | 15.005 | 200*125*16 | 34.649 |
| 75*75*10 | 11.089 | 160*160*16 | 38.518 | 80*50*6 | 5.935 | 200*125*12 | 29.761 |
| 80*80*6 | 7.376 | 180*180*12 | 33.159 | 80*50*7 | 6.848 | 200*125*14 | 34.436 |
| 80*80*7 | 8.525 | 180*180*14 | 38.383 | 80*50*8 | 7.745 | 200*125*16 | 39.045 |
| 80*80*8 | 9.658 | 180*180*16 | 43.542 | 90*56*5 | 5.661 | 200*125*18 | 43.588 |
| 80*80*10 | 11.874 | 180*180*18 | 48.634 | 90*56*6 | 6.717 | ||
| 90*90*6 | 8.35 | 200*200*14 | 42.894 | 90*56*8 | 8.779 | ||
| 90*90*7 | 9.656 | 200*200*16 | 48.68 | 100*63*7 | 8.722 | ||
| 90*90*8 | 10.946 | 200*200*18 | 54.401 | 100*63*8 | 9.878 |
Storage video
Warehouse storage
The company mainly engaged in steel production, sales and other businesses. The main products include all kinds of steel plate, steel pipe, bar, profile and other materials and section steel. At the same time is a number of domestic large steel mill level agents, with a certain price advantage.

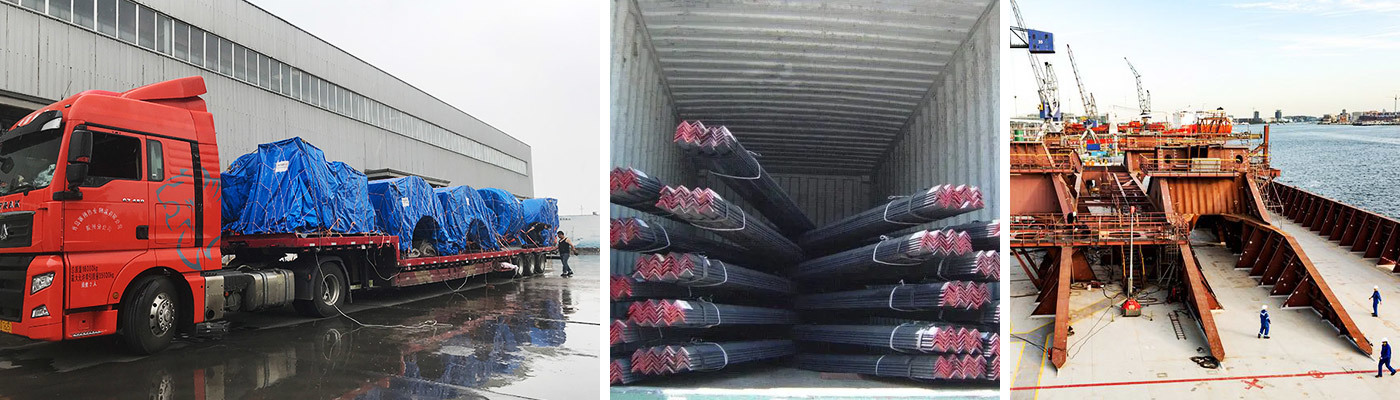

Packing and delivery
