A588 Channel steel

Item: ASTM A588 steel channel.
Dimensions: UPN & UPE.
Web width: 80 - 200 mm.
Web thickness: 6 - 8.5 mm (UPN) & 4.5 - 5.2 mm (UPE).
Flange width: 45 - 75 mm (UPN) & 40 - 76 mm (UPE).
Flange thickness: 8 - 11.5 mm (UPN) & 7.4 - 9.0 mm (UPE).
Length: 3 m, 6 m, or as required.

Classification :

Channel steel

+8615562683779

Business@sdhmgtmetal.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

PRODUCT DETAILS

Product introduction

A588 Steel Channel - High Strength & Corrosive-Resistant

ASTM A588 is another HSLA steel which is used to manufacture steel channels - C & U shapes. It has better comprehensive properties than A572 for its small amount of alloy elements - copper, chromium and nickel. The copper content itself resists corrosion effectively. Therefore, A588 steel channel section has wider applications than mild carbon steel channel like A36. It is the premium alternative for ship & car.

A588 steel channel to be exported to south korea.

Applications:

Bridges, buildings, cars, equipment.
Stair stringers, wall framing.
Warehouse, factory work shop.
Ceiling channel.

Product description:

Item: ASTM A588 steel channel.
Dimensions: UPN & UPE.
Web width: 80 - 200 mm.
Web thickness: 6 - 8.5 mm (UPN) & 4.5 - 5.2 mm (UPE).
Flange width: 45 - 75 mm (UPN) & 40 - 76 mm (UPE).
Flange thickness: 8 - 11.5 mm (UPN) & 7.4 - 9.0 mm (UPE).
Length: 3 m, 6 m, or as required.
Surface treatment: non-treatment, galvanised or primer.
Note: special channel sizes are available on order.

Technical data

Chemical composition (heat analysis)

Steel grade	>Carbon, max,%	Manganese,%	Phosphorus,max,%	Sulfur,max,%	Silicon,%	Nickel,max,%	Chromium,%	Copper	Vanadium,%
A588 grade A	0.19	0.80 - 1.25	0.04	0.05	0.30 - 0.65	0.40	0.40 - 0.65	0.25 - 0.40	0.02 - 0.10

Mechanical property
Steel grade	Styles	Tensile strength, ksi [MPa]	Yield point, min, ksi [MPa]	Elongation in 8 in. [200 mm], min, %	Elongation in 2 in. [50 mm], min, %
A588 grade A	Steel channels	70 [485]	50 [345]	18	21

ASTM A588 steel u channel sizes - UPN
Item	Depth (mm)	Flange width (mm)	Web thickness (mm)	Flange thickness (mm)	Weight (kg/m)
UPN80	80	45	6	8	8.64
UPN100	100	50	6	8.5	10.6
UPN120	120	55	7	9	13.4
UPN140	140	60	7	10	16
UPN160	160	65	7.5	10.5	18.8
UPN180	180	70	8	11	22
UPN200	200	75	8.5	11.5	25.3

ASTM A588 steel c channel sizes - UPE
Item	Depth (mm)	Flange width (mm)	Web thickness (mm)	Flange thickness (mm)	Weight (kg/m)
UPE80	80	40	4.5	7.4	7.05
UPE100	100	46	4.5	7.6	8.59
UPE120	120	52	4.8	7.8	10.4
UPE140	140	58	4.9	8.1	12.3
UPE160	160	64	5	8.4	14.2
UPE180	180	70	5.1	8.7	16.3
UPE200	200	76	5.2	9	18.4

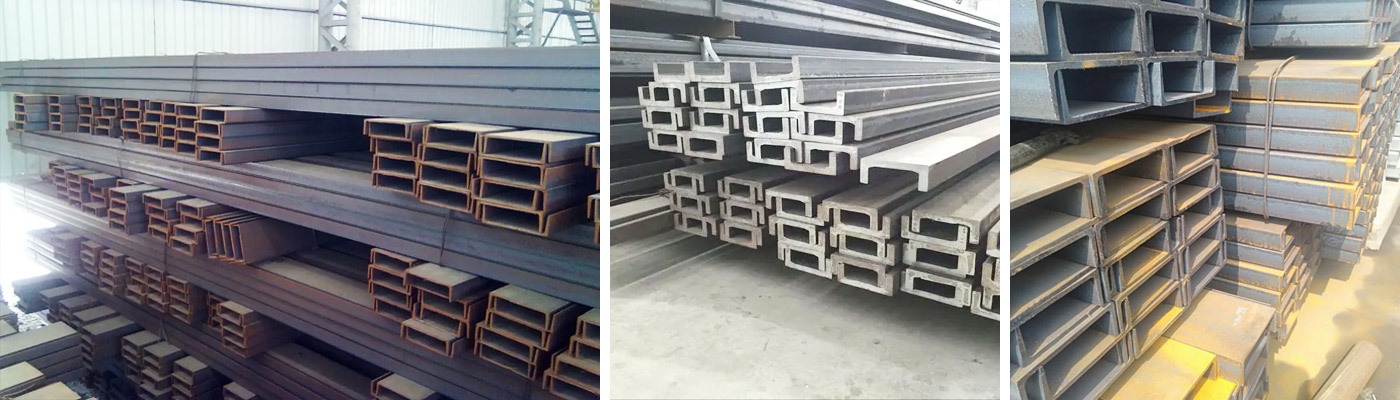

Storage video
